New C-THRUE - Double Polarized Antenna Concrete Radar
C-thrue is an all-in-one Ground Penetrating Radar (GPR) for accurate scanning and real time analysis of concrete structures. Construction and service companies as well as civil and structural engineers can now improve the way they locate rebars, voids, post-tension cables, cavities, conduits, and any other objects buried in the structure before cutting or drilling into the concrete.
C-thrue is an easy-to-use and robust solution to see through concrete structures and reveal true data that lead to optimal decision-making. The solution is suited for all construction sites and operations including building renovation, overpasses, monuments, bridges and tunnels surveys, as well as for detailed analysis of the original engineering project and comparison with the as-built structure.
Today, C-thrue offers more
flexibility with no limitations for your analysis requirements, thanks
to a compact
and light telescopic pole and an external
controller that can be easily transported on site
in challenging locations or conditions (e.g. under a deck, along
vertical walls, etc...).

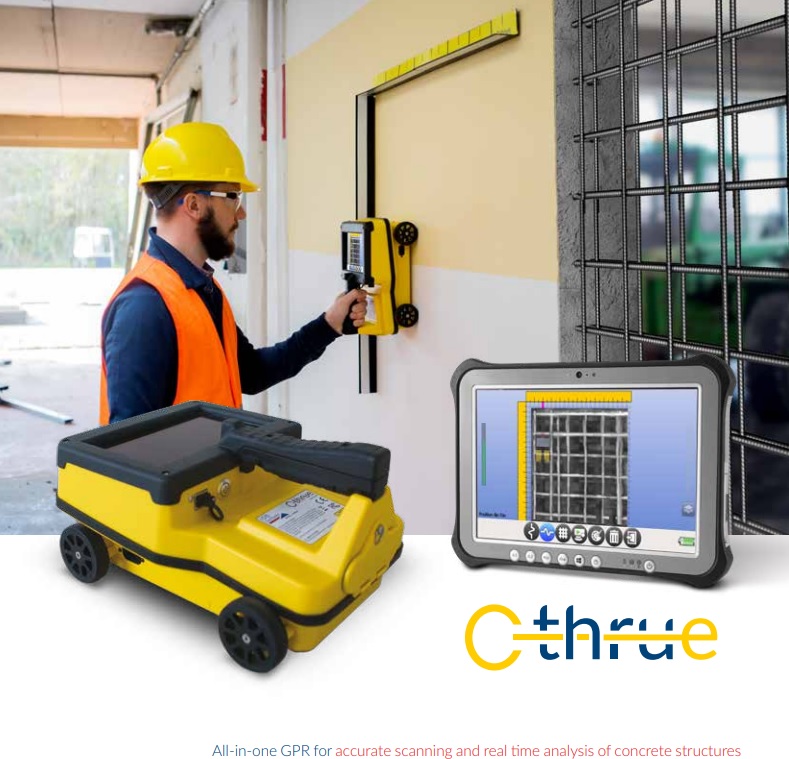

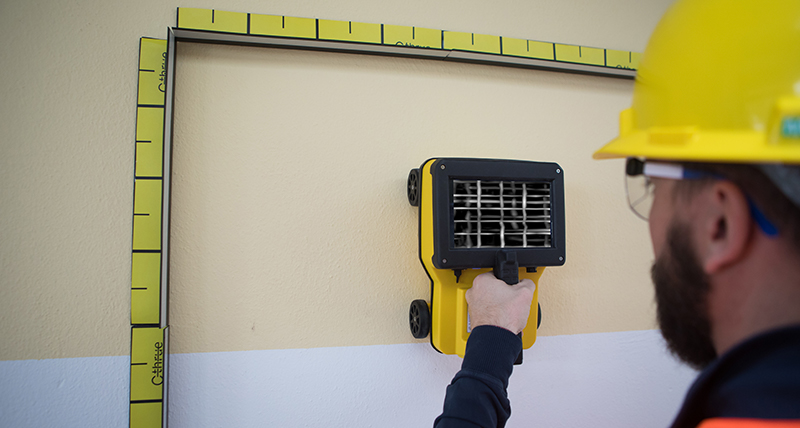

The C-thrue external controller allows easier and faster data
interpretation thanks to real-time data processing and representation of
results in Augmented
Reality for more efficient decision-making.
Key Benefits
-
Clearer
and faster surveys
Detection of both first and second levels of rebars thanks to the system’s double polarisation. -
Safe drill in the surveyed structure
Rebar/void automatic insight capabilities that improve safety before cutting or drilling into the concrete. -
Fully-visible, multi-touch display
Data displayed on the screen are never obscured by the handle or the user’s hand. -
Simplified data interpretation

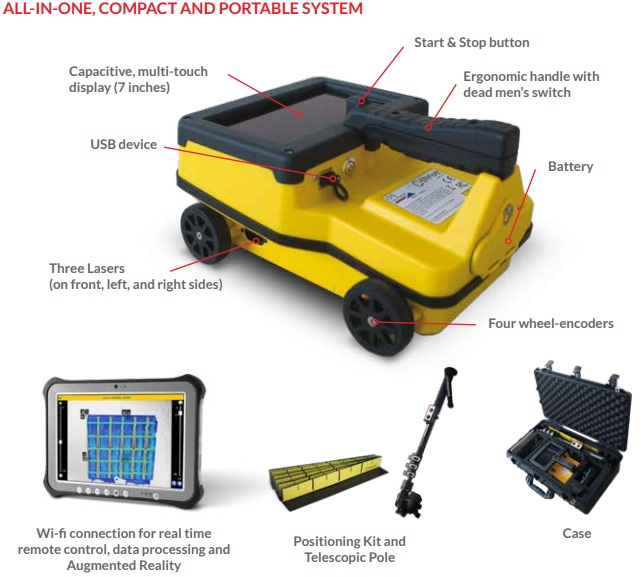

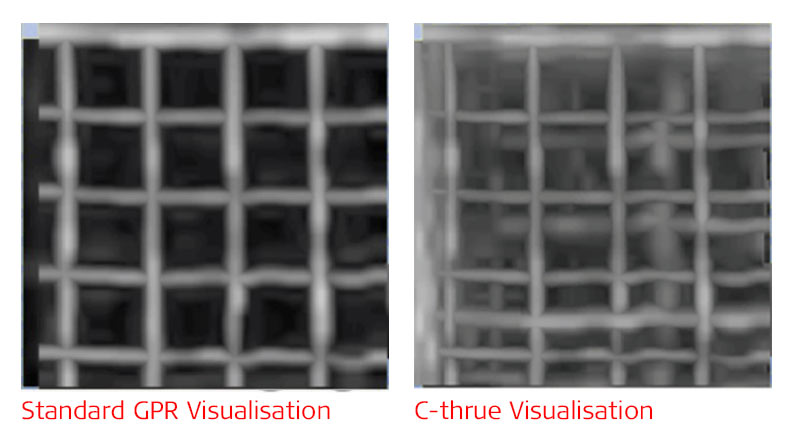

Optimal decision-making supported by visualisation of acquired data in 3D models. -
Increased data accuracy
Eliminate manual, error-prone paper grids with an automatic positioning and navigation system. -
Advanced data visualisation
Augmented reality for 3D data visualisation and sharing across operators – in real time or intervals after acquisition. -
Automated data acquisition and analysis
Automatic detection of the first layer of rebars and result exportation. -
Flexibility everywhere
Lightweight, compact, drop resistant and transportable system for every user operations and construction sites.
Technical Specifications
|
C-THRUE |
|
|
SYSTEM
SPECIFICATIONS |
|
|
Antenna
Center
Frequency |
2.0 GHz |
|
Number
of
Antennas |
4 |
|
Antenna
Polarisation |
Horizontal
and
Vertical |
|
Number of
Radar
Channels |
2 |
|
Scan Interval |
Up to
10 scans/cm |
|
Depth
Range |
Up to
80 cm
(up
to
31.5
in.) |
|
Display modes |
B-Scan
and
C-scan
(radar
tomography) |
|
Positioning
system |
“Virtual
Pad”
(based
on 3
High
safety
-
Class
1 laser sensors
with
reflective
bars) |
|
AC Power
Conduits
Detection |
EM sensor
integrated
(50/60
Hz) |
|
Battery |
Li-ion
battery,
15V,
3.2Ah,
3-hour
runtime |
|
Data Storage |
32 GB |
|
Connectivity |
USB,
Wi-Fi |
|
ENVIRONMENTAL
SPECIFICATIONS |
|
|
Operating
Temperature |
-20°C
to
+50°C
(-4°F
to
+122°F) |
|
Storage
Temperature |
-40°C
to
+60°C
(-40°F
to
+140°F) |
|
Environmental |
IP65 |
|
MECHANICAL
SPECIFICATIONS |
|
|
Dimensions
(length
x width
x
height) |
285mm
x 200mm x
160mm
(11,2in
x 8,6in
x 6,3in) |
|
Weight |
2.4 kg
(5
lb)
with
battery |
|
Display |
7.0 inches
TFT
multi-touch |
|
Drop Resistant |
Compliant
with
MIL-STD-810G |
|
SOFTWARE
SPECIFICATIONS |
|
|
C-thrue software |
Quick start-up
Real time
radar
data
acquisition,
processing
and visualization
in B-Scan
Real time
feature
marking,
management
and
editing
tool
|
|
|
Rebar/Void
automatic
discrimination
VirtualPad
* -
Positioning
& navigation
system
Visualization
of
C-scan
(radar
tomography)
Real time
diagnose
of radar
and
the
other
devices
Metric and
imperial
units
Available
in
more
than
20
languages
First rebar
layer
automatic
detection
Automatic
job reports
Real
time Power conduit
sensing
display |
|
ACCESSORIES
SPECIFICATIONS |
|
|
C-thrue
External
Controller |
Remote
control
of
C-thrue
Representation
of results
in
Augmented
Reality
(when
used with
Virtual
Pad)
Display:
10.1
inches
Drop
resistant:
1.8 m
(5.9
ft)
Connectivity:
4G LTE,
Wi-Fi Environmental:
MIL-
STD 810G and
IP65 |
|
C-thrue Handle |
Telescopic
aluminum
pole
1.8 m
(6
ft)
Remote
control
buttons |
